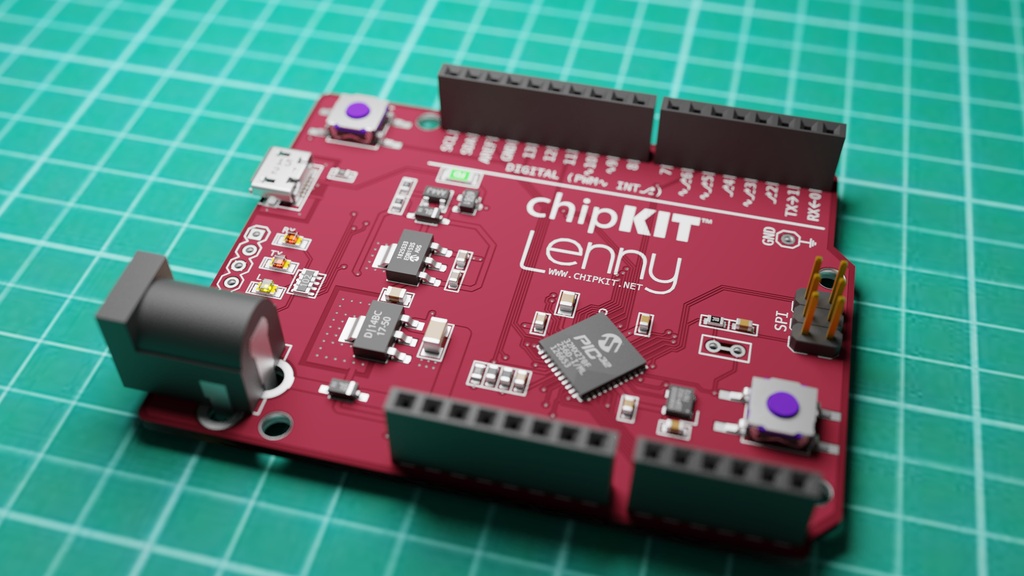

chipKIT® Lenny

https://www.majenko.co.uk/web/image/product.template/7/image_1920?unique=57f1e38

£ 23.00 23.0 GBP £ 23.00

£ 23.00

Not Available For Sale

  • Digital IO
  • Memory (Flash / EEPROM)
  • Microcontroller
  • Memory (SRAM)
  • Frequency
  • Analogue Inputs
  • PWM Outputs
  • Interrupt Inputs
  • SPI Ports
  • I2C Ports
  • Voltage (IO)
  • UART Ports

This combination does not exist.

Digital IO: 27
Memory (Flash / EEPROM): 256KiB
Microcontroller: PIC32MX270F256D-I/ML
Memory (SRAM): 64KiB
Frequency: 40MHz
Analogue Inputs: 6
PWM Outputs: 5
Interrupt Inputs: 5
SPI Ports: 2
I2C Ports: 2
Voltage (IO): 3.3V
UART Ports: 2
Related Documents:
DS1184.pdf LennyROHS.pdf



Terms and Conditions

30-day money-back guarantee
Shipping: 2-3 Business Days

Features

Arduino Compatability

The chipKIT Lenny is designed to be as close to the Arduino Leonardo as physically possible. The choice of microcontroller, the PIC32MX270F256D with advanced Peripheral Pin Select, means GPIO pin functions can be mapped to match those of common Arduino boards. By default that mapping is configured to be equivalent to the Arduino Leonardo.

PIC32 Power

With considerably more Flash and SRAM than the Arduino Leonardo the chipKIT Lenny gives your program room to breathe and expand. Open up new horizons with advanced high-speed peripherals. Dual SPI ports, both of which support I2S audio codec interfacing opens the door to high quality audio processing. Direct control over the USB interface allows you to emulate keyboards, mice, serial connections and more. The 40MHz default configuration (may be increased to 50MHz) lets you do considerably more calculations and operations in a shorter time.

USB Connectivity

A direct USB connection allows the chipKIT Lenny to appear as a wide range of different devices to your computer. If you want a traditional serial connection you can have a traditional serial connection. If you want to make a special keyboard the computer can see it as a normal system keyboard. If you want to make a mouse controlled by your hamster you can make the computer recognise it as a standard mouse.
